Mitutoyo 340-252-30: Digital Micrometer Interchangeable Anvil 150-300mm, IP65, Incl. 6 Anvils

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Emerson 475 FP-1-E-KL-U-GMT-S HART Field Communicator, Foundation Field Bus, Bluetooth , ATEX

SAR30,000.00

Description Downloads Reviews

The Mitutoyo 340-252-30 IP65 Interchangeable Outside Micrometer has the following specifications:

Range: 150-300mm
Resolution: .001mm
Includes: 6 anvils & 6 standards

FEATURES:

IP65 water/dust protection 340 series models with a range up to 12in/300mm.
Wide measuring range with interchangeable anvils.
With a Ratchet Stop for constant force.
Supplied with zero-setting standards bar for each range.
With SPC output

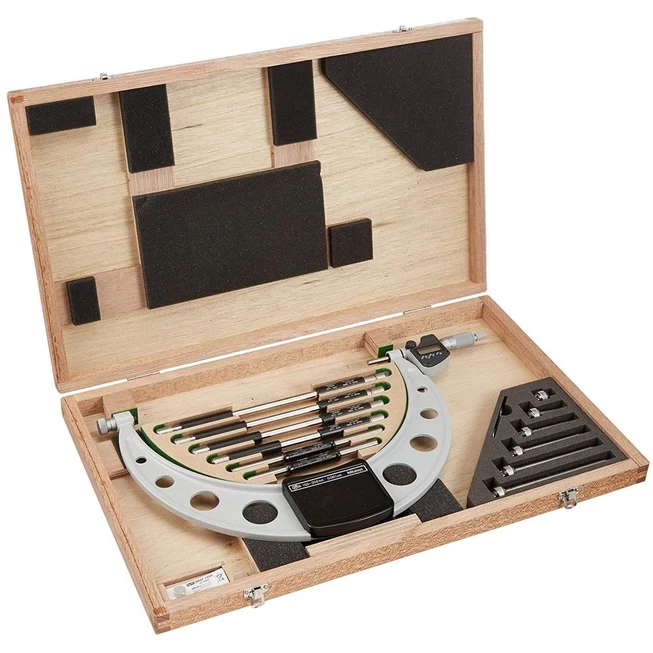

Supplied in fitted wooden case.

TECHNICAL DATA:

Accuracy: ±(4+R/75)Ìm, R=max. range (mm), [.00016" ±.00004 (L/3)"] L = Max Range (Inch)
Flatness: 0.6µm / .000024" for models up to 300mm / 12"; 1Ìm / .00004" for models over 300mm / 12"
Parallelism: 2µm / .00008" for models up to 75mm / 3"; 3Ìm / .00012" for models up to 150mm / 6"; (2+R/100)µm for models over 150mm, R=max. range (mm); [.00008" ± .00004 (L/4)"] L= Max range (inch)
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use
Dust/Water protection level: IP65

FUNCTION OF DIGITAL MODEL:

Zero-setting, Data hold, Preset, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Function Lock
2 Presets
