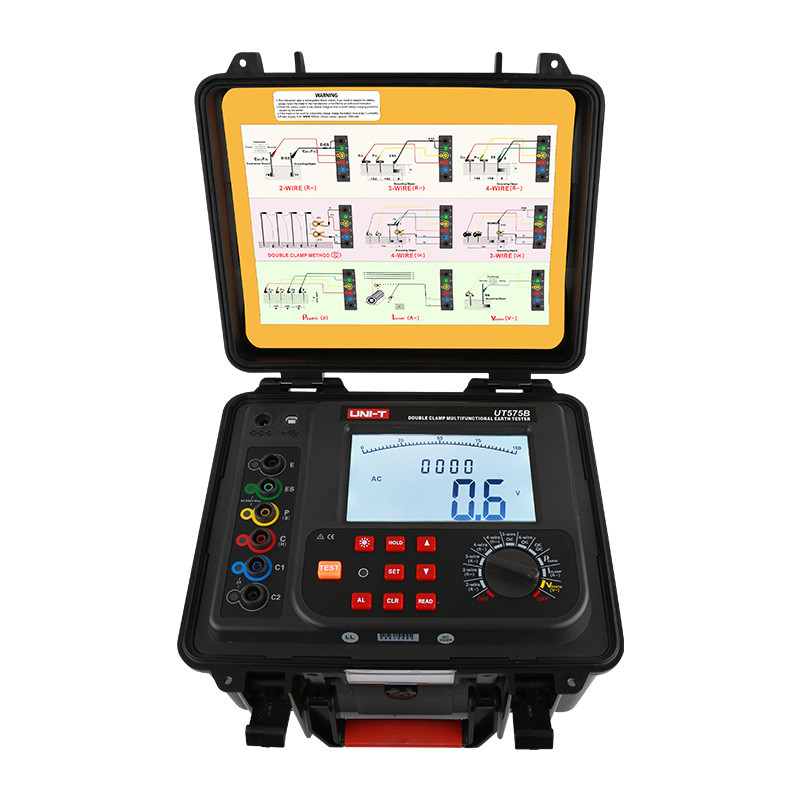

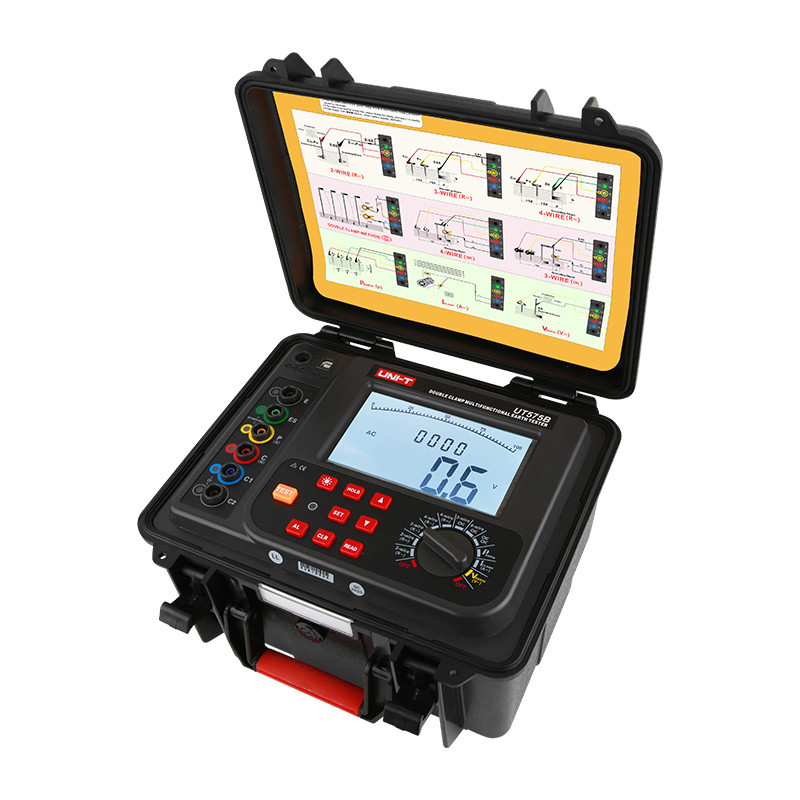

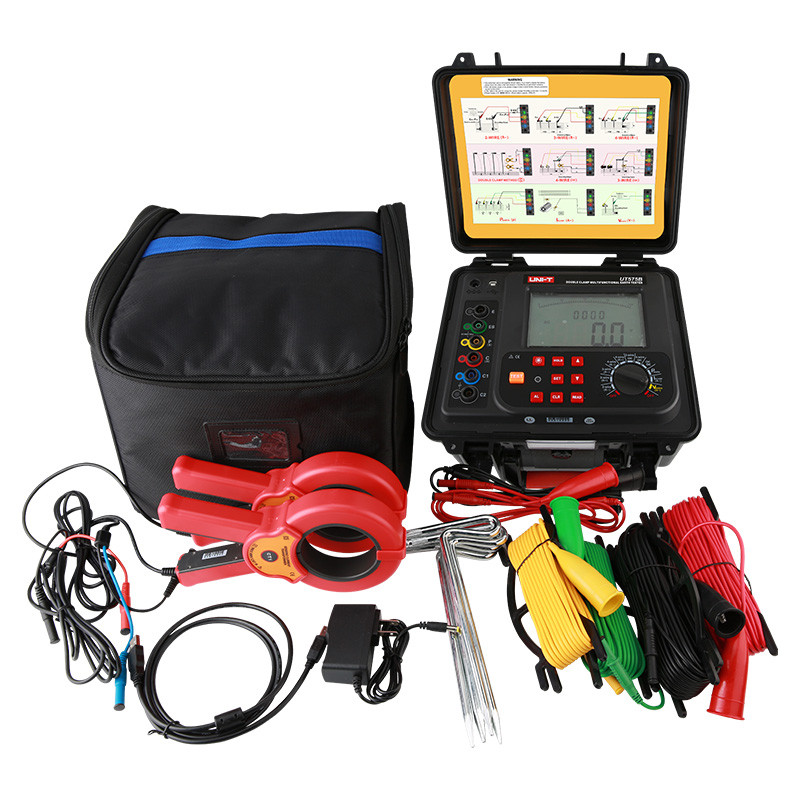

Description: The UT575B double-clamp multifunctional earth tester is a high-end instrument designed for on-site measurement of various ground parameters. It offers advanced digital processing technology, multiple measurement methods, and a large-diameter current clamp for accurate readings. With storage, clock, Bluetooth, and USB capabilities, it facilitates data management and analysis. Widely used in industries like power, telecommunications, and construction.

Features of UT575B double-clamp multifunctional earth tester
Certifications (UT575B series only): ROW
1. Multiple measurement methods
a) 2/3/4 wires: 0.00Ω~300.00KΩ;
b) Selective method:0.00Ω~3000Ω;
c) Double clamp method: 0.01Ω~100Ω;
2. Ground voltage: AC 0.0V~100.0V (auto range)
3. Ground current: AC 0.00mA~600.0A (auto range)
4. Soil resistivity: 0.00Ωm～9000KΩm (0.01Ωm)
5. Strong anti-interference: 128Hz/111Hz/105Hz/94Hz(auto range)
6. Large clamp jaw diameter: up to 70mm
7. Data storage: 2000 set
8. PC software analysis via USB B
9. Audible alarm function
