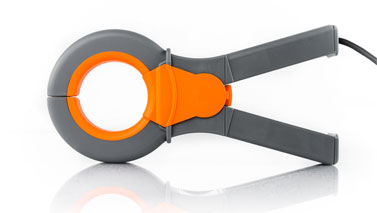

HT Instruments HT97U Current Clamp

Sold By

NCIEM

(0 customer reviews)

Top Selling Products

Testo 270 Cooking Oil Tester

SAR2,000.00
Hioki DT4222: Digital Multimeter

SAR390.00
HTA102 Sound level Meter with Calibrator

SAR4,000.00
Megger MIT1525 - 15kV Insulation Resistance Tester

SAR30,000.00
RD C.A.T4+ and GENNY4 Underground Radiodetection Cable & Pipe Locator

SAR15,000.00
Flir E8-XT InfraRed Camera with MSX & WiFi

SAR15,000.00

Description Downloads Reviews

Description
The HT Instruments HT97U AC Current Clamp is an accessory designed to extend the AC current measurement capabilities of compatible devices, such as multimeters and power quality analyzers. It is not a standalone clamp meter but a rigid clamp transducer for measuring AC current up to 1000A.

Key Features
Measuring range: 0.1 to 1000A AC, with selectable ranges of 10A, 100A, and 1000A.
Accuracy: The basic accuracy is ±1.0% of the reading, but detailed accuracy varies based on the current range.
Frequency range: Measures AC current from 40 Hz to 10 kHz.
Output signal: The maximum output signal is 1V AC, with different mV/A ratios for each range.
Conductor size: It has a clamp jaw internal diameter of 54mm, which can accommodate cables up to 2.12 inches. It can also clamp bus bars up to 35x35mm or 50x12mm.
Safety rating: CAT III 600V overvoltage category.
Connector: Features a Hypertac output connector.
Weight: Weighs approximately 720g (1.59 lbs)
