PRODUCT DESCRIPTION:

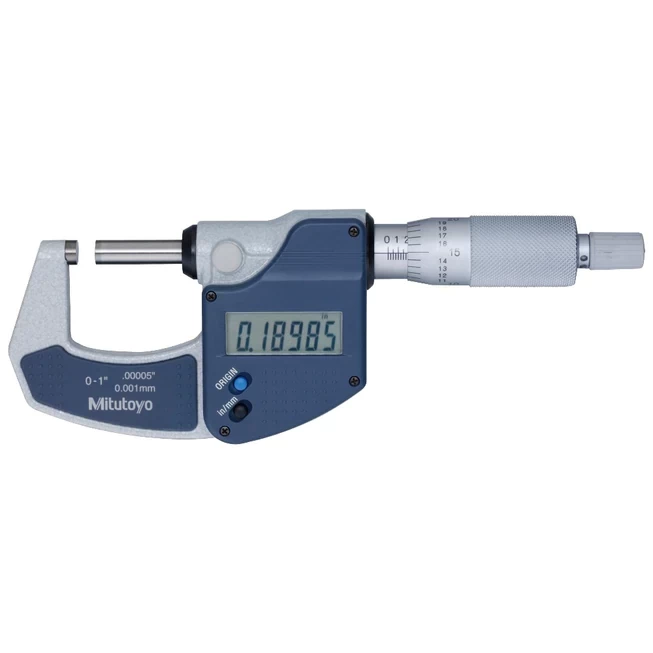

Mitutoyo new model Digimatic MDC-Lite micrometer 293-831-30 features the NEW electromagnetic ABSOLUTE sensor, improving resistance to environmental conditions such as dirt, oil and water that can cause false readings. It has a measuring range of 0-1"/ 25.4mm with Inch/Metric conversion and a Ratchet Stop. The 293 Series features a Zero-set key for easy origin setting, either a ratchet stop or friction thimble for a constant measuring force, measurement readout with large characters on the LCD screen, Carbide tipped measuring faces and comes in a fitted plastic case. Also includes Automatic power on/off feature as well as low voltage and counting value composition error alarms. No spindle clamp, no data output.

Specification:

● Range: 0-1"/0-25.4mm
● Resolution: .00005"/0.001mm
● Accuracy: +/- 0001"/.002mm
● SPC Output: No
● Type: Ratchet Stop
● Flatness: 0.3um / .000012"
● Parallelism: 2um / .00008"
● Measuring faces: Carbide tipped
● Display: LCD
● Battery: SR44
● Battery life: Approx. 1.2 years under normal use

Download
